Technical data

• * Console table
• * autom. Console positioning
• * Clamping element dreistiufig
• * Laser Positioning aid for Vacuum clamps
• * Vacuum clamps

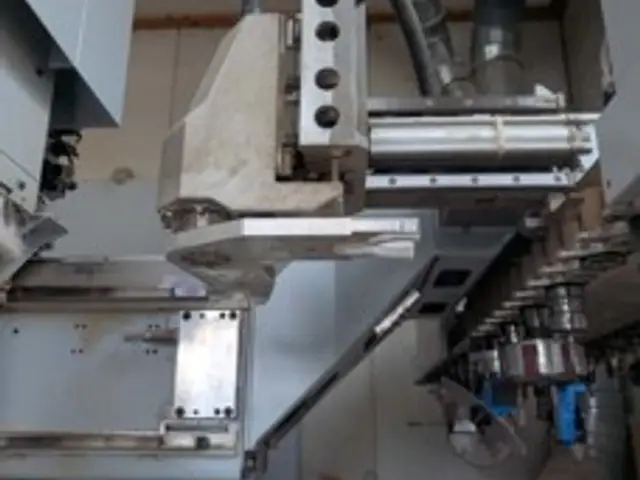

• Main spindle 15 KW
• C-Axis with Aggregatsschnittstelle
• Schnittstelle for Flex5-Unit
• Kettenwechsler 30 -fold
• Werkzeugaufnahme HSKF 63

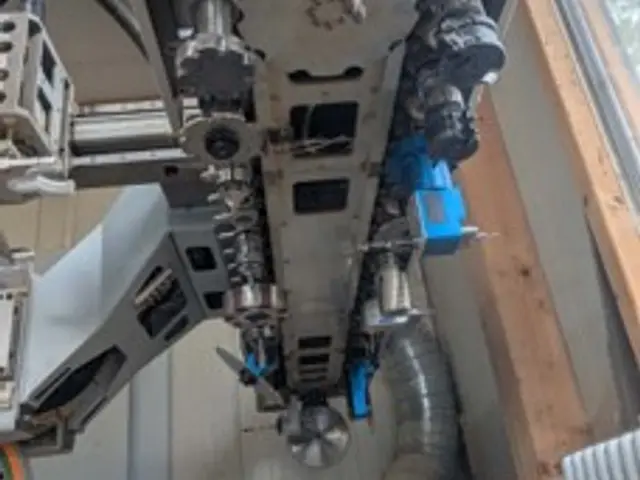

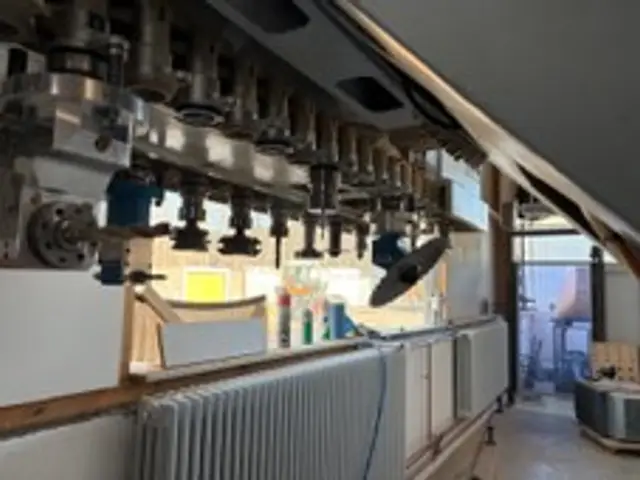

• Drilling head 13 Spindles
• WoodWop Package for AV -PC
• Rack drive for x and y-Axis
• Ball screw for Z-Axis
• Travel Z-Axis 600 mm
• Verfahrgeschwindigkeiten
• Vektorgeschwindigkeit 113 /min.
• X- and X-Axis 80 m/min.
• Z-Axis 30 m/min.

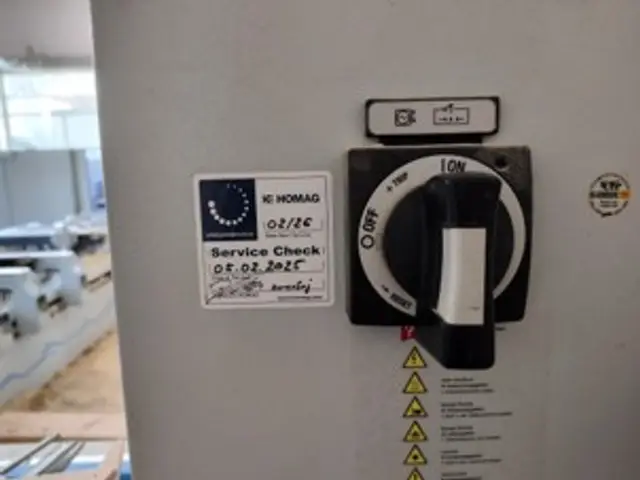

• Control cabinet free-standing.

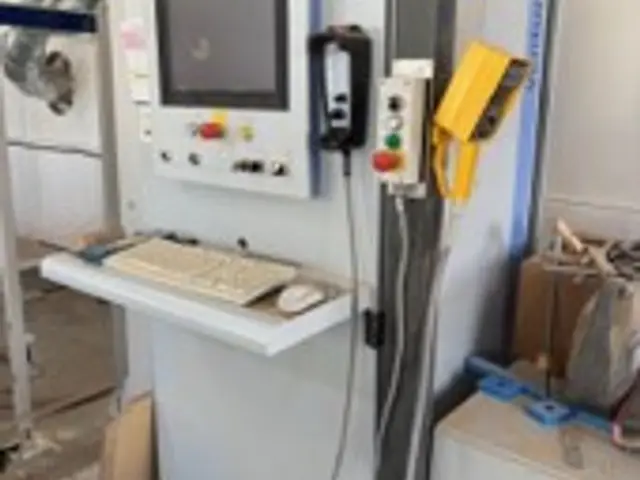

• Homag Control
• Homag Homatic CNC System NC 83 with SPS Control
• Ferndiagnose / Telefonmodem
• Technical Data
• Workpiece length max.. 4000 mm all Unit einteln max. 1375 mm at Pendelbelegung
• Tool diameter 25 mm
• Single 4175 mm / Pendel 1550 mm
• Workpiece width all Units: front 1150 mm rear 1400 mm Workpiece thickness 40 mm
• Fräsbearbeitung WZ-Diameter 25 mm front 1220* mm rear 1550 mm
• *Workpiece thickness 40 mm
• Console table K
• Console length 1340 mm
• Seitenanschlaglineale
• Vacuum clamps
• Workpiece thickness max.. 300 mm with Standard clamps
• max.. 120 mm with mechanischen SpannelementenSpannschablonen (by the customer)
• to max.. 80 mm with Standard clamps
• Working height 960 mm Unterkante Workpiece
• PM Basisaufrüstung
• automatic Kosolenpositionierung
• Clamping element three-stage
• Main spindle 15 KW (12 KW im S1 Betrieb)
• Frequenzumrichter
• Spindle with Hybridlagerung
• C-Axis with Aggregateschnittstelle
• Schnittstelle for Flex5 Unit
• vertikale Spindles Highspees
• pneum. Absenkb. Einlegehub
• Clamping element two-stage for PM Console
• Klemmvorrichtung Pfosten Edge
• Clamping element three-stage for PM Console

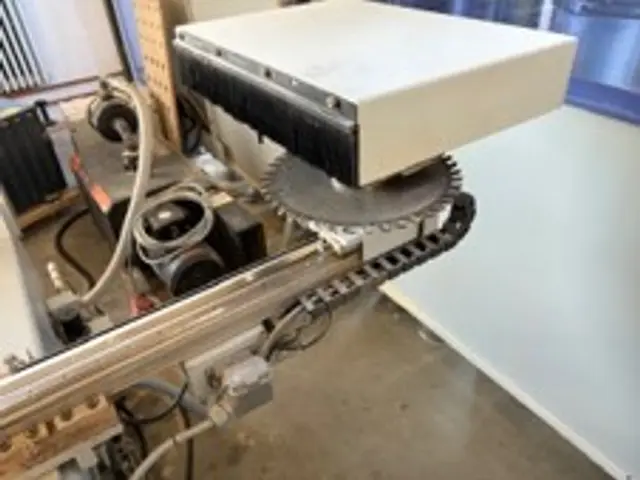

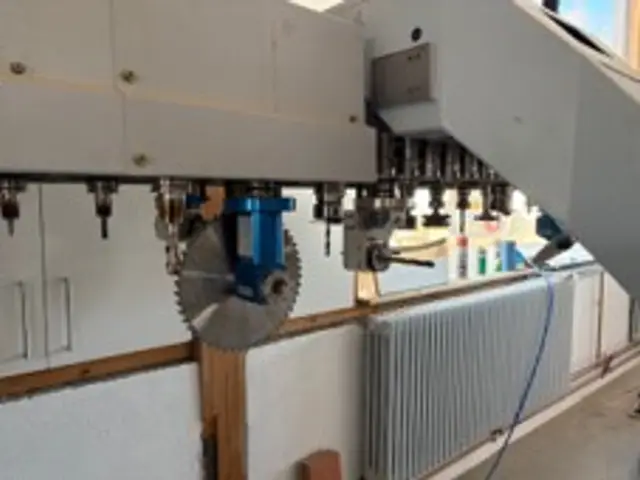

• Saw unit D= 280 mm
• Drilling unit / Milling unit 4-Spindles F. WZ-Wechsler
• Lock case unit 2
• immediately available
• Gegen Mehrpreis can also einzelne Tools gekauft are.
• Im Grundpreis are the abgebildeten Werzeuge NICHT enthalten!

All details without guarantee Further technical data on request. Details translated automatically from German.
